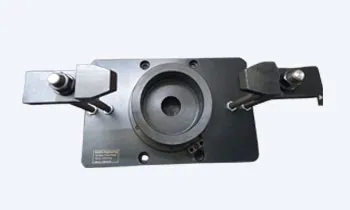

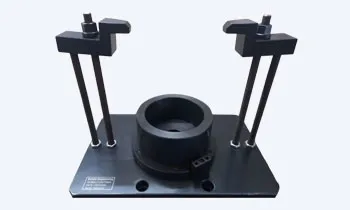

5th Axis Fixtures

Our 5th Axis Fixtures are developed with advanced engineering to support complex machining operations. Key features include :

• High Precision : Ensures exact positioning for components requiring multi-axis machining.
• Versatile Design : Accommodates a wide range of workpiece sizes and geometries.
• Sturdy Construction : Built using hardened materials for exceptional durability and stability under high loads.
• Compact Footprint : Optimized to save space on the machining table, increasing productivity.
• Quick Setup : Reduces downtime with efficient clamping and adjustment mechanisms.
• Rotational Accuracy : Provides smooth rotation and accurate angular positioning for tight tolerances.
• Corrosion Resistance : Treated with anti-corrosion coatings to withstand harsh machining environments.

• Requirement Analysis : Collaborate with clients to understand specific machining challenges, workpiece dimensions, and tolerances.
• Design Engineering : Create 3D CAD models to simulate operations and ensure fixture compatibility with CNC machines.
• Material Selection : Use premium-grade steel or aluminum alloys to balance strength and weight.
• Precision Manufacturing : Utilize advanced CNC milling, grinding, and turning techniques for superior accuracy.
• Assembly & Calibration : Assemble the fixture with precision components and calibrate it for optimal performance.
• Quality Control : Perform rigorous testing, including rotational accuracy, load-bearing capacity, and dimensional checks.
• Customer Support : Provide documentation, training, and post-sales support to ensure smooth implementation.

• Aerospace Industry : Machining turbine blades, engine components, and intricate structural parts.
• Automotive Industry : Manufacturing high-performance parts like camshafts, engine blocks, and gear housings.
• Medical Device Industry : Producing orthopedic implants, surgical tools, and precision medical components.
• Tool and Die Manufacturing : Crafting intricate molds and dies for industrial applications.
• Energy Sector : Machining components for wind turbines, oil exploration equipment, and power generation systems.
• General Engineering : Handling complex geometries for prototyping and batch production.

• Enhanced Efficiency : Reduced setup times and fewer repositioning requirements.
• Improved Accuracy : Achieve tighter tolerances for complex geometries.
• Cost Savings : Lower operational costs through improved machining efficiency.
• Increased Versatility : Adaptable to various workpiece sizes and multi-axis machining needs.
• Durable and Reliable :Designed for heavy-duty applications and long-lasting performance.
